1250G PVDF Architecture Membrane Material

Outstanding features of 1250 PVDF membrane material:
1. The surface is coated with titanium dioxide, which has excellent resistance to yellowing and remains unchanged for three years under strong outdoor ultraviolet radiation.
2. We use the highest quality PVDF surface treatment agent from Germany to ensure a long-lasting self-cleaning effect on the surface of the membrane material. The surface is not prone to dust accumulation and can maintain a white and new state for a long time.
3. Tensile strength above 7000N/5cm, suitable for various large-span buildings

Anhui Longsheng New Material Technology Co., Ltd.,was founded in 2010, 1250G PVDF Architecture Membrane Material Suppliers in China. Adopting the advanced technology in the field of European membrane materials, our products are sold well both at home and abroad and have received unanimous praise from customers.
SOCIAL SHARE
Prev：950G PVDF and Acrylic Building Membrane MaterialNext：1100G PVDF Tensile Membrane Fabric

Basic Info.:

Model TingHao L6
Weight(G/SQM) 1250G
Material 100% Polyester yarn with PVC  Coating
Surface Front-side Titanium dioxide and PVDF lacquered
Tensile strength (N/5CM) 7300N/7000N  (warp/weft)
Thickness 0.98mm

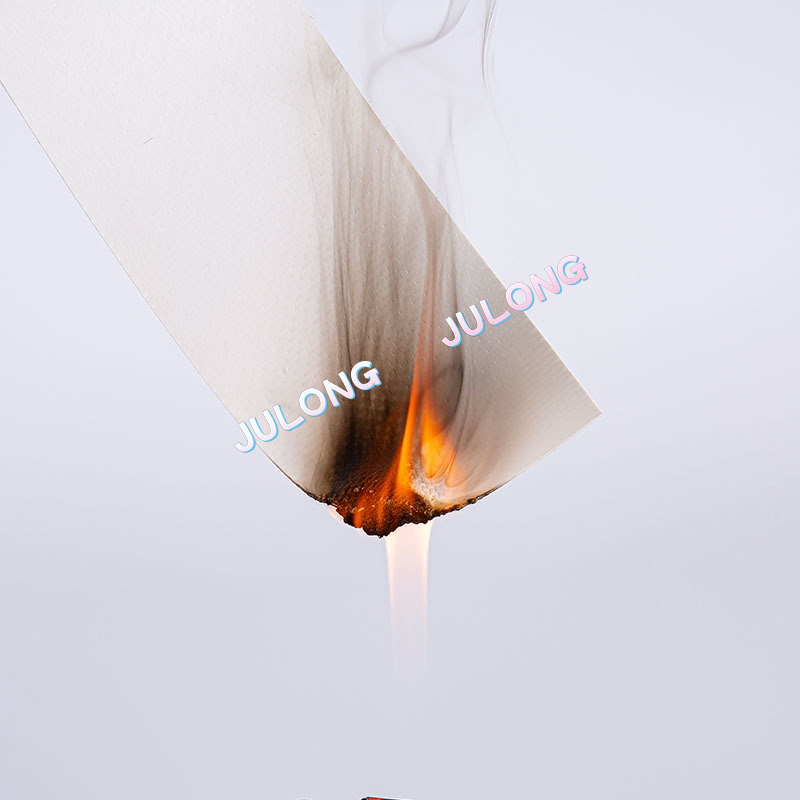

Flame Retardant B1 (DIN4102)
Width 3M
Length(M/R) 50M
Color white 9005
MOQ ≥2500m
Base fabric specs 1500D*1500D32*32 per inch
Yarn High Yarn
Special performance Strengthen Anti-UV, Strengthen Anti-Mildew
Sample A4 Size Sample Free
Lead Time 15-30 Working Days
Remark Roll length, width, etc, can be customized according to needs

What are the main applications of 1250g PVDF material?
1. Large-span membrane structure buildings with high requirements for membrane strength.
2. Coastal and desert areas with strong winds.
3. The high intensity of ultraviolet radiation can easily cause aging and accelerated yellowing of membrane materials.
4. Membrane structure buildings with high requirements for structural aesthetics, such as scenic spots, municipal image projects, iconic buildings, airports, and large exhibition halls.

1250G TingHao L6 Project Case

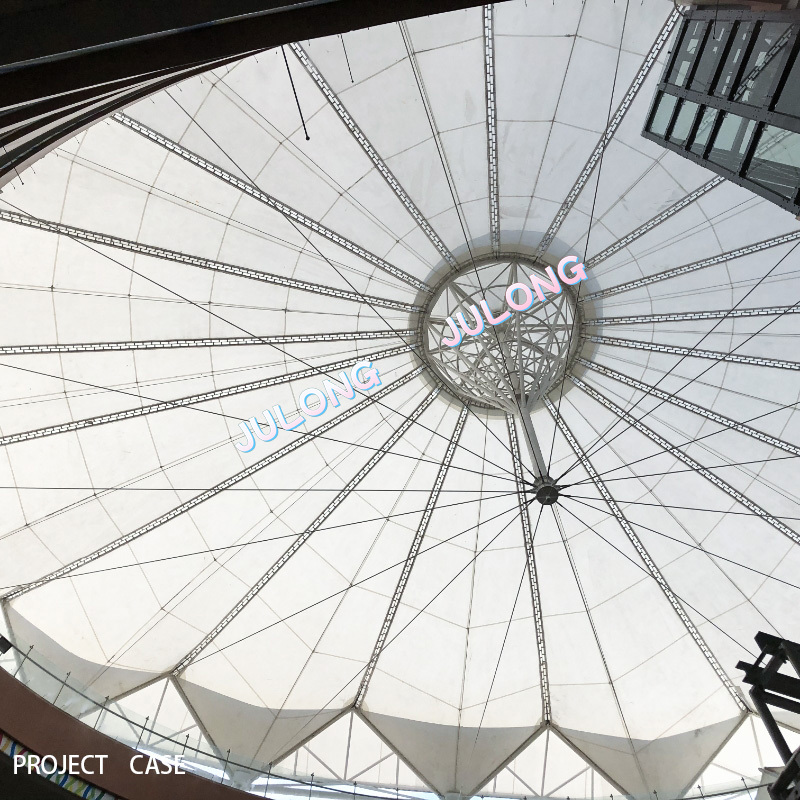

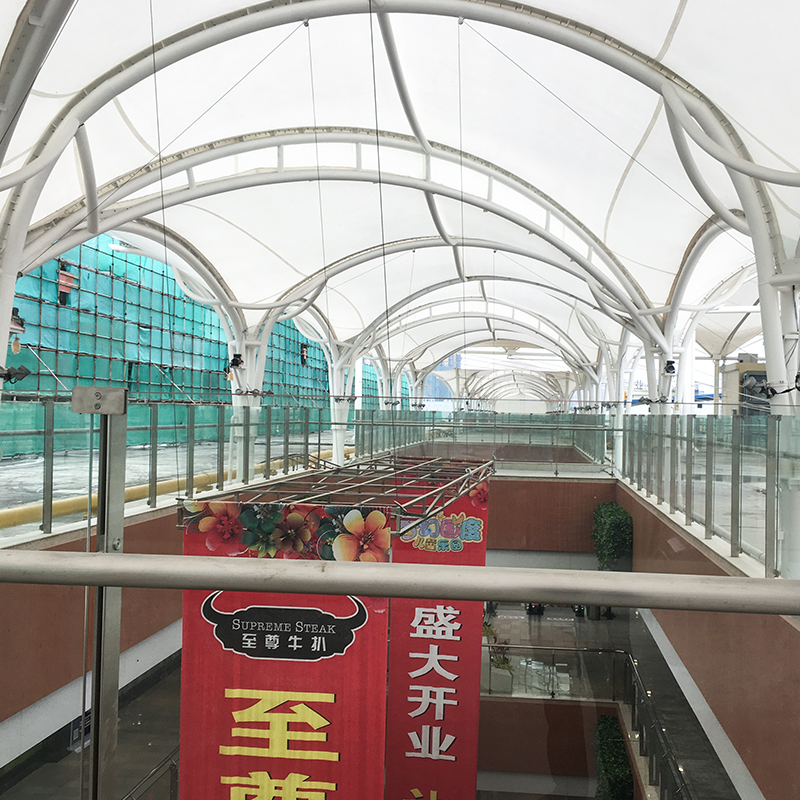

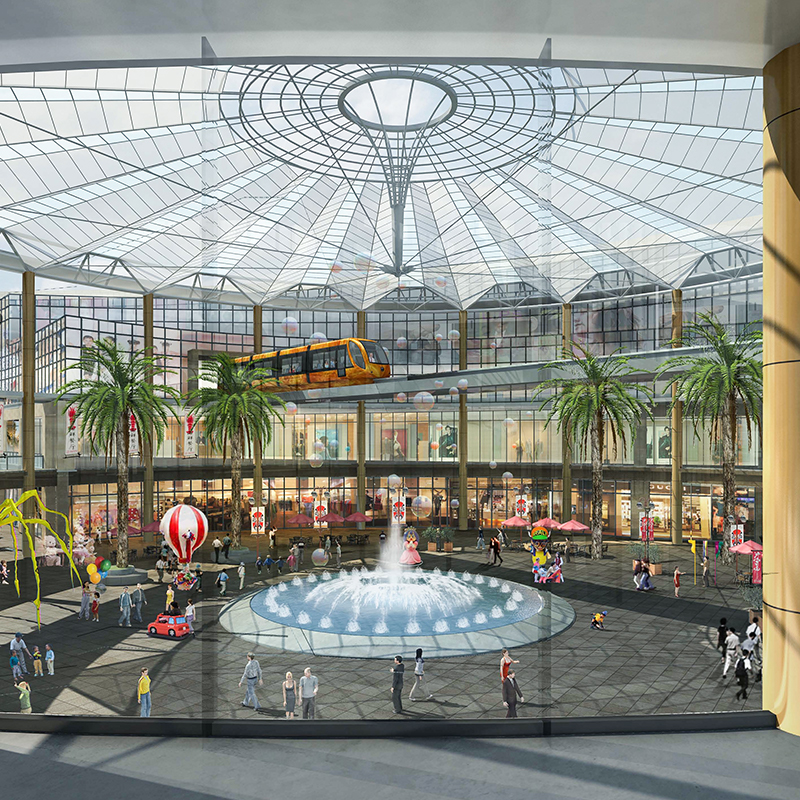

Project Name: Qingyuan Shunying Times Plaza Commercial Street Membrane Project.		 Structure Form: 38m large-span art space cable tensile membrane, PVDF & ETFE combined membrane structure Tensile Membrane supply: Longsheng;
Partners: Qingyuan Shunying Real Estate Group, Shenzhen Aoke Jinding Group
Construction Area: 14,000 square meters		 Warranty Period: 15 Years

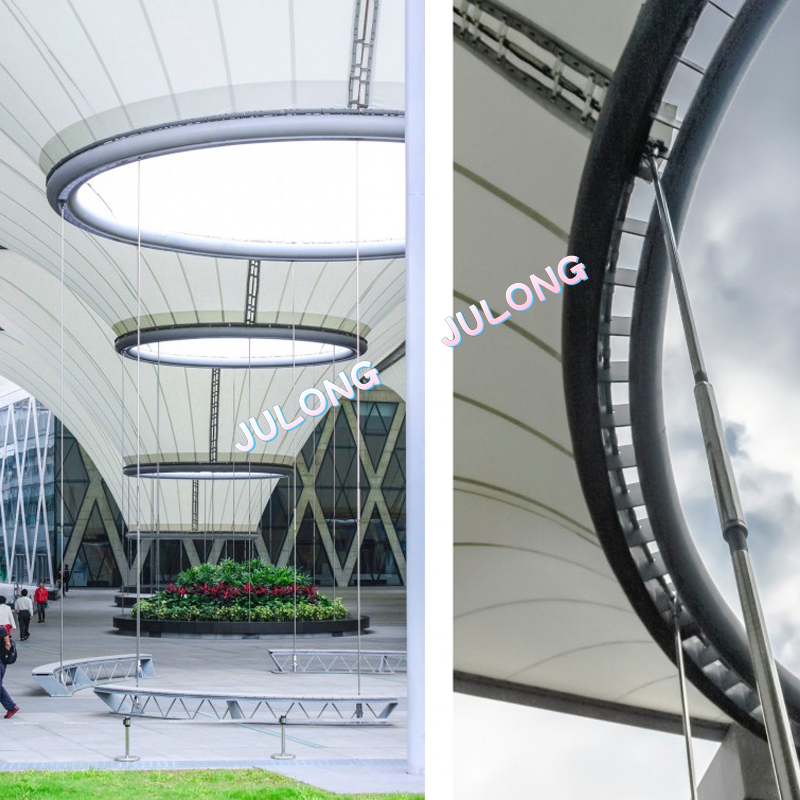

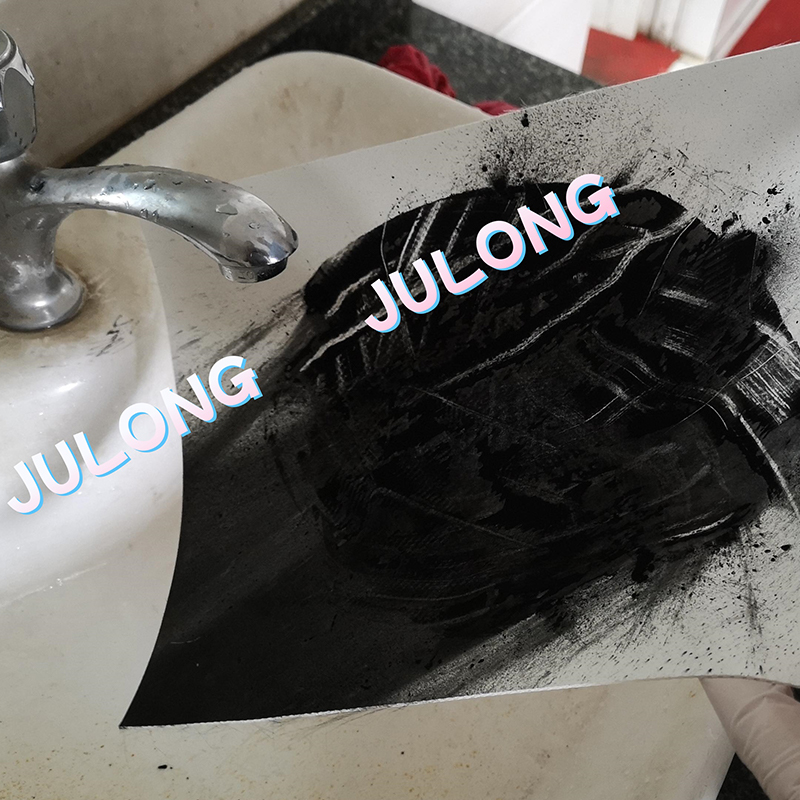

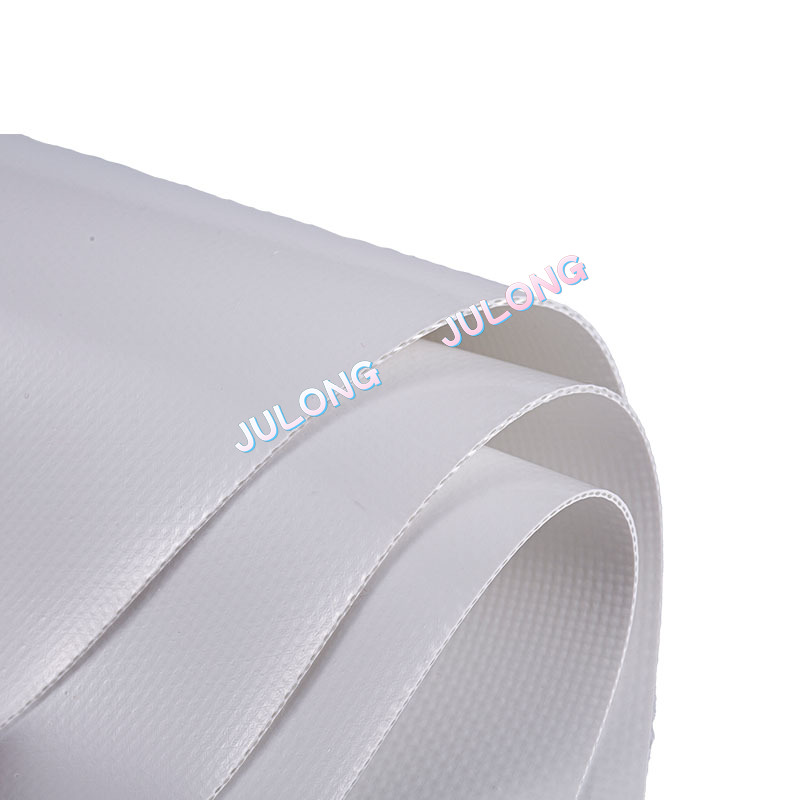

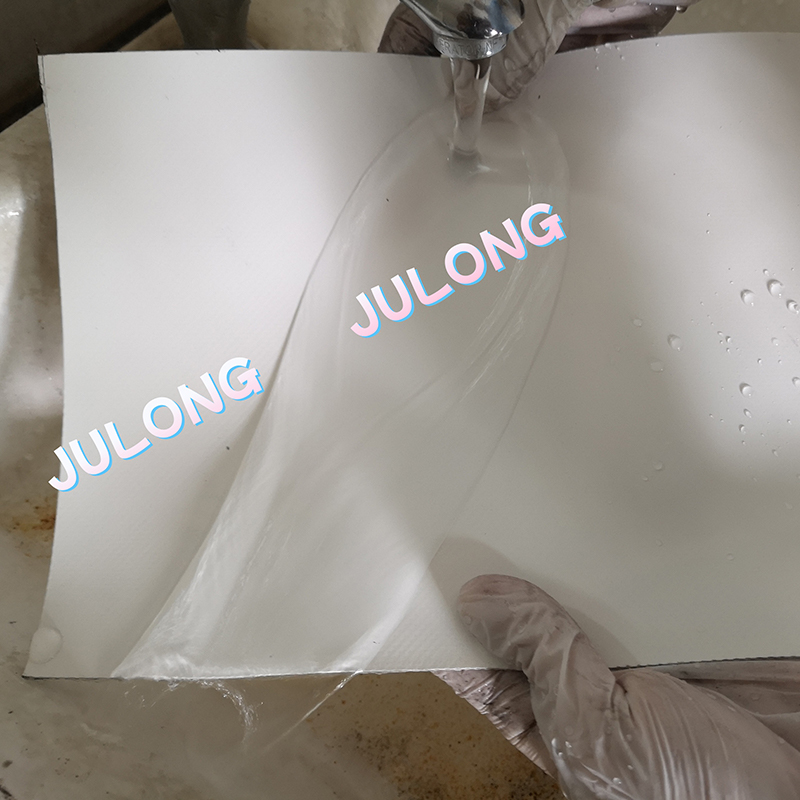

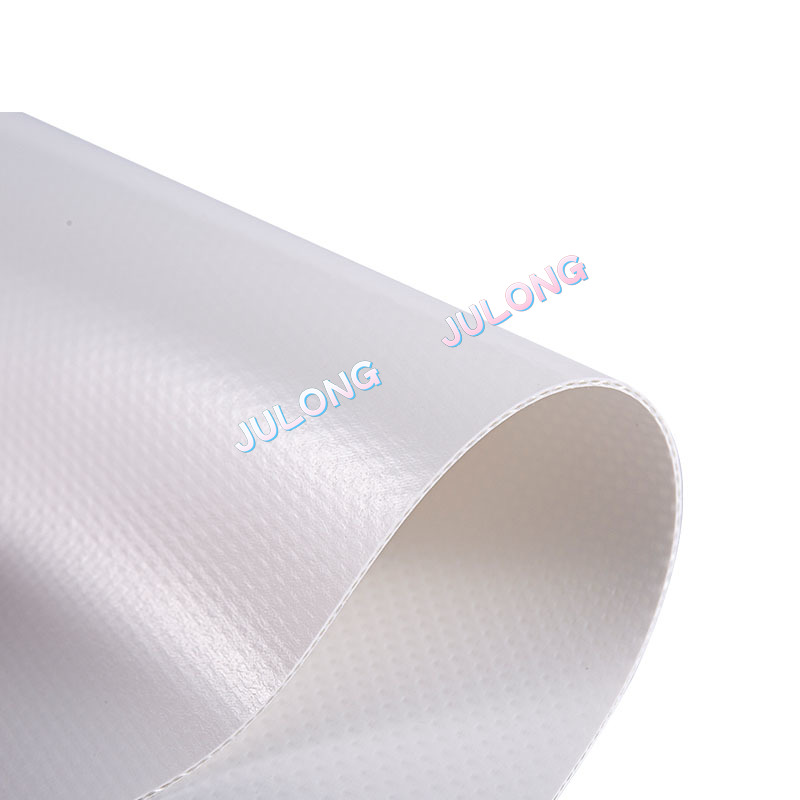

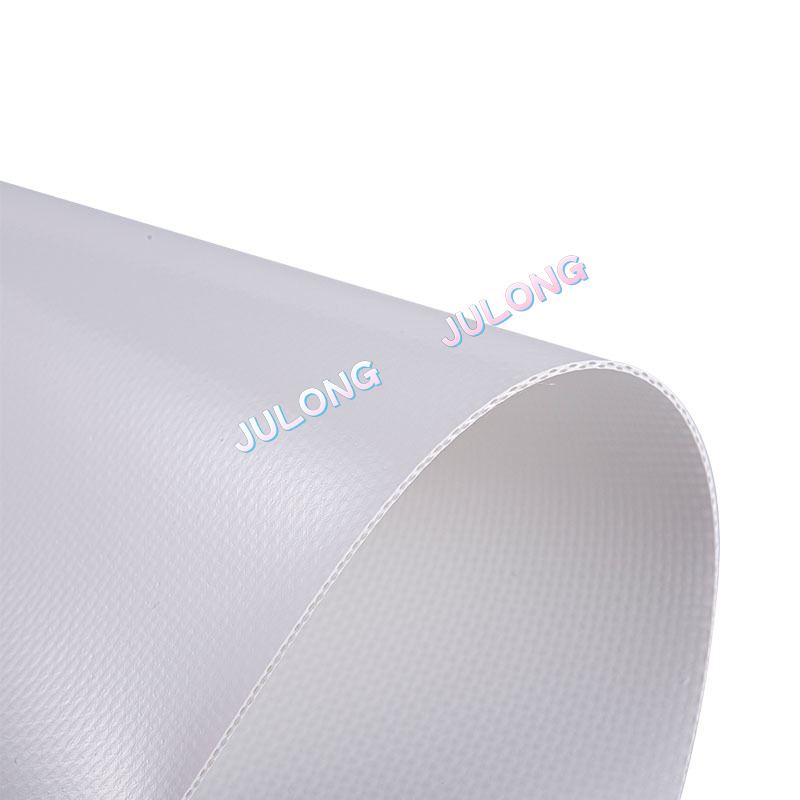

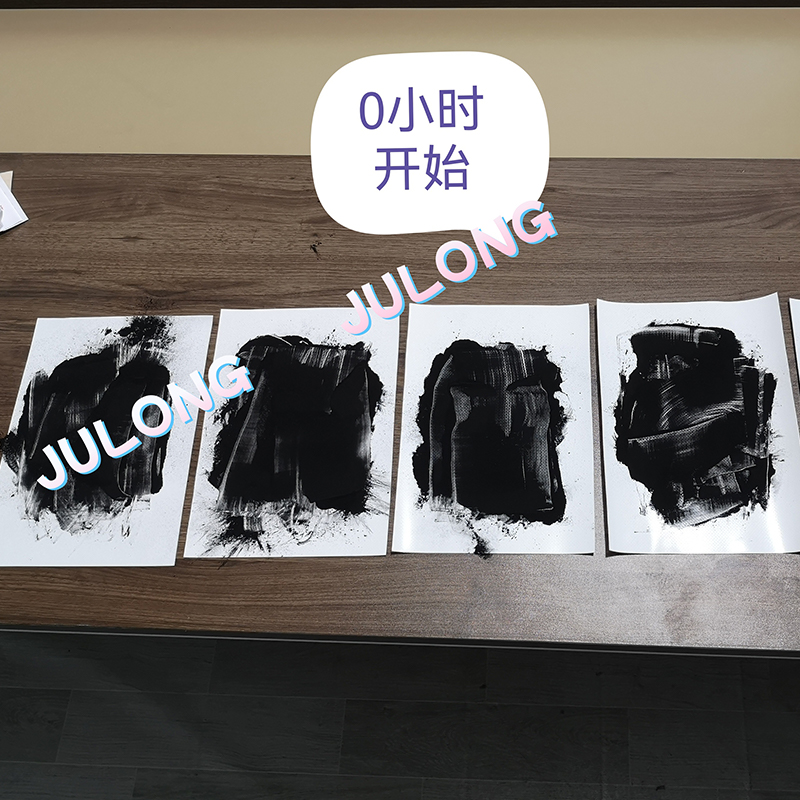

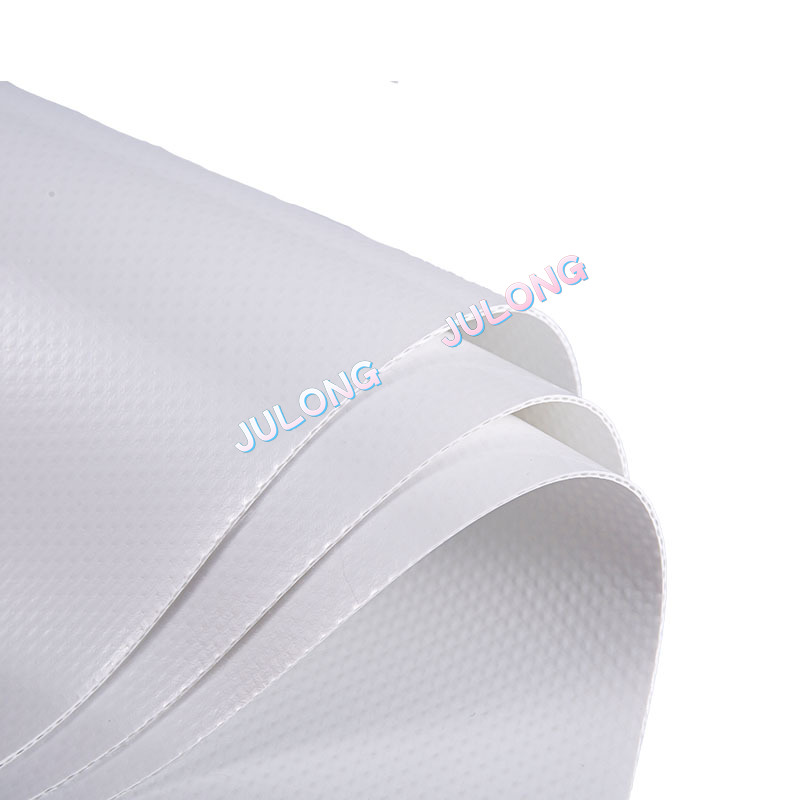

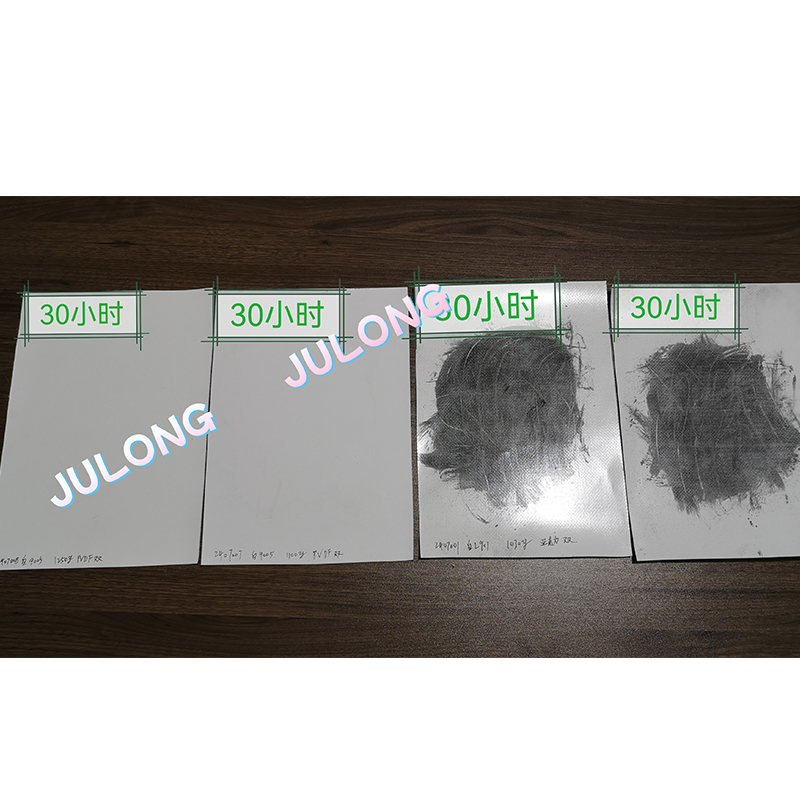

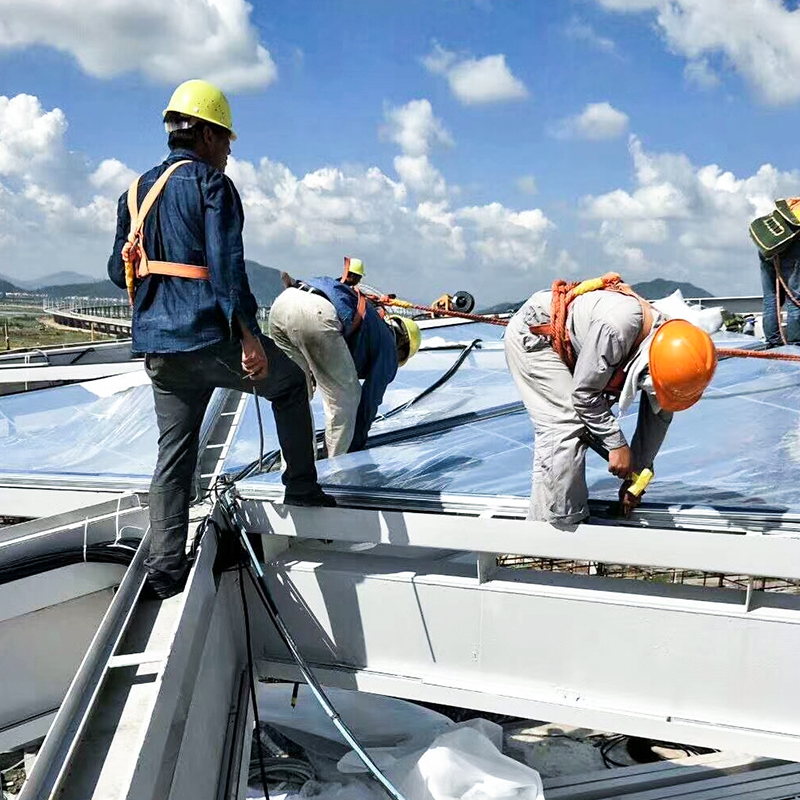

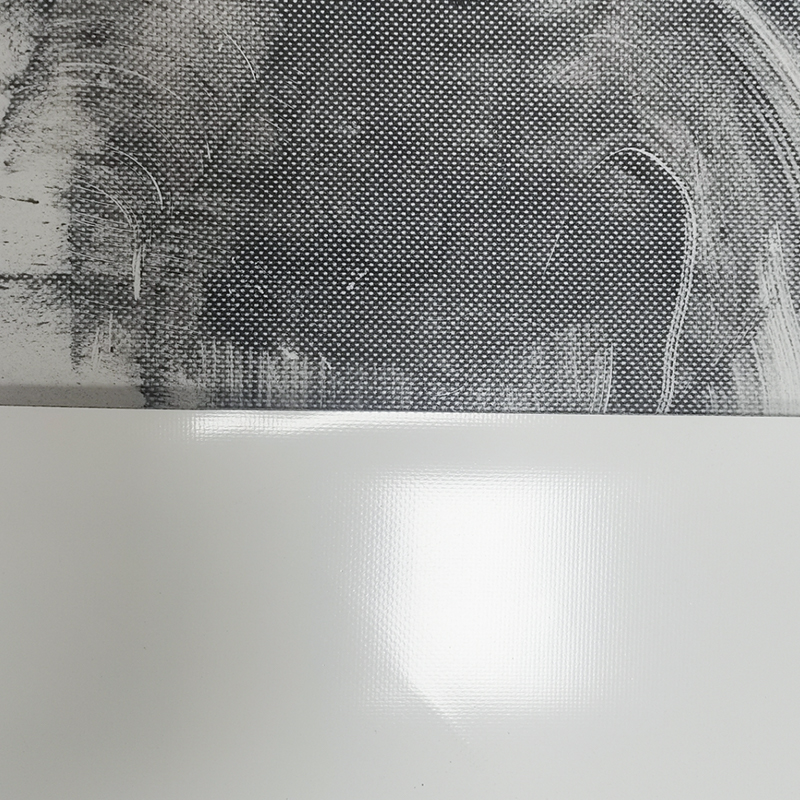

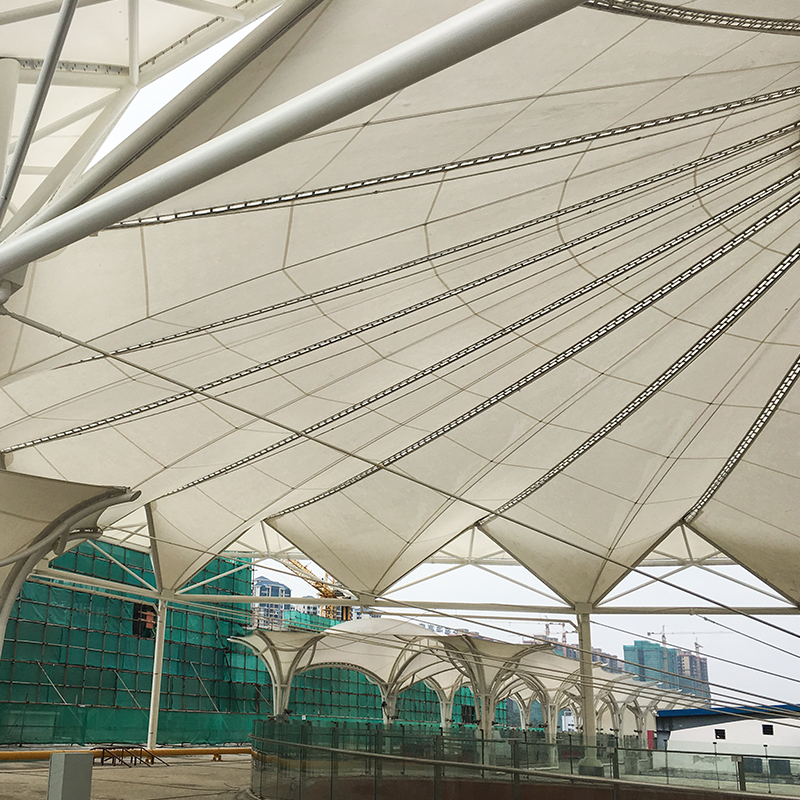

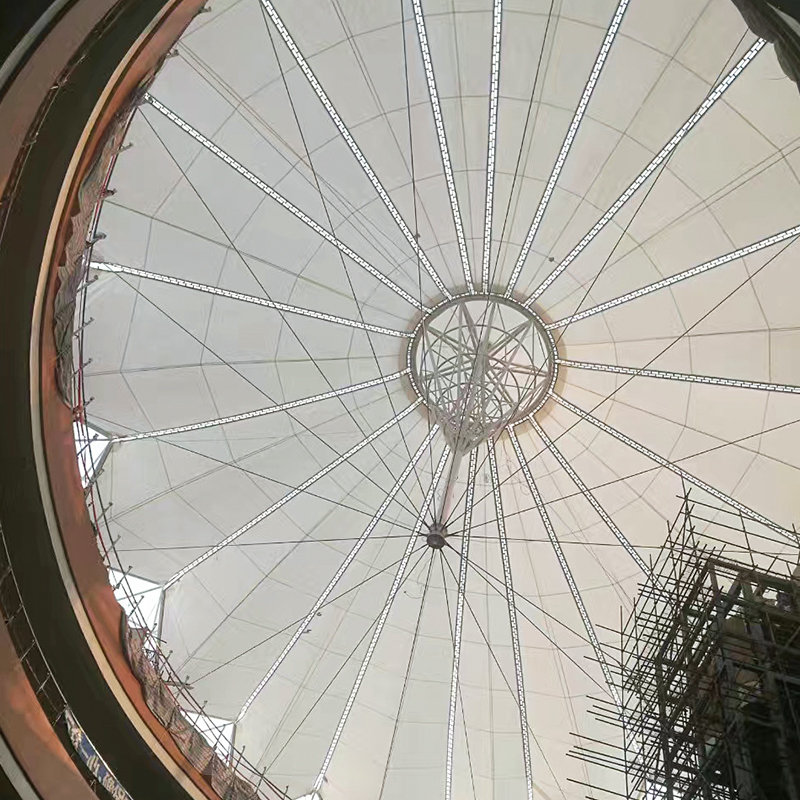

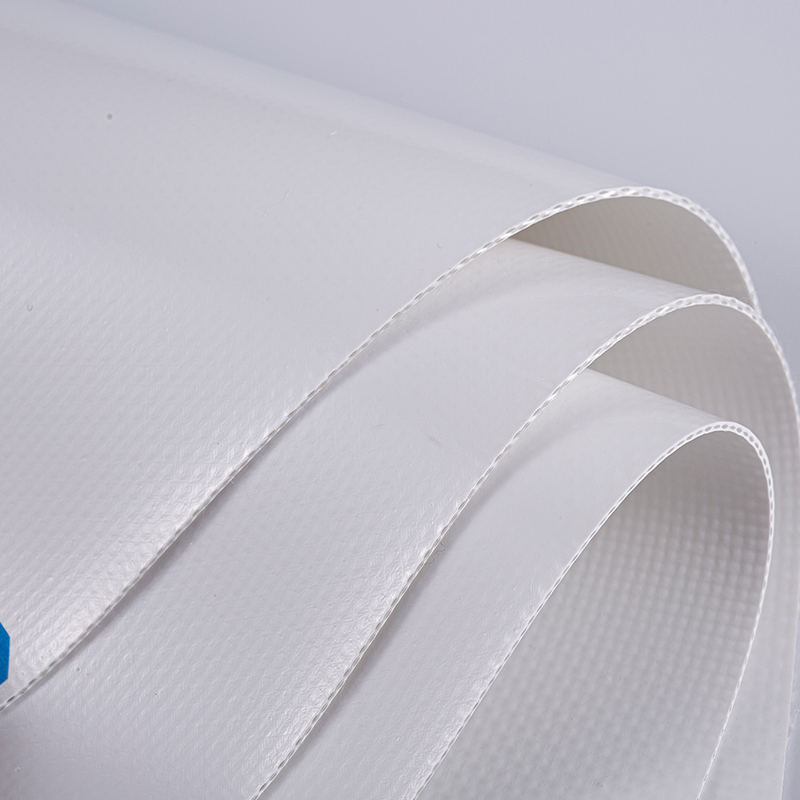

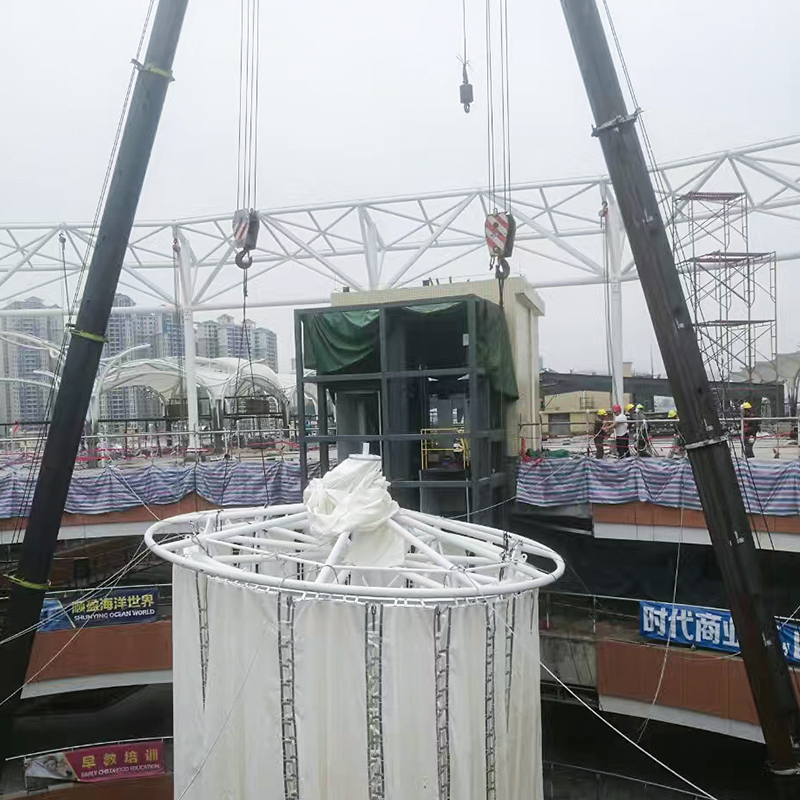

1250G PVDF Tensile membrane Installation Site Completed Appearance Black carbon powder is spread on 1250G PVDF tensile membrane surfaces for self-cleaning comparison testing. Condition at 60°C for 96 h followed by surface water washing, Tinghao L6 shows zero black residue; the ordinary reference sample is badly contaminated 1250G TingHao L6 Tensile membrane surface style

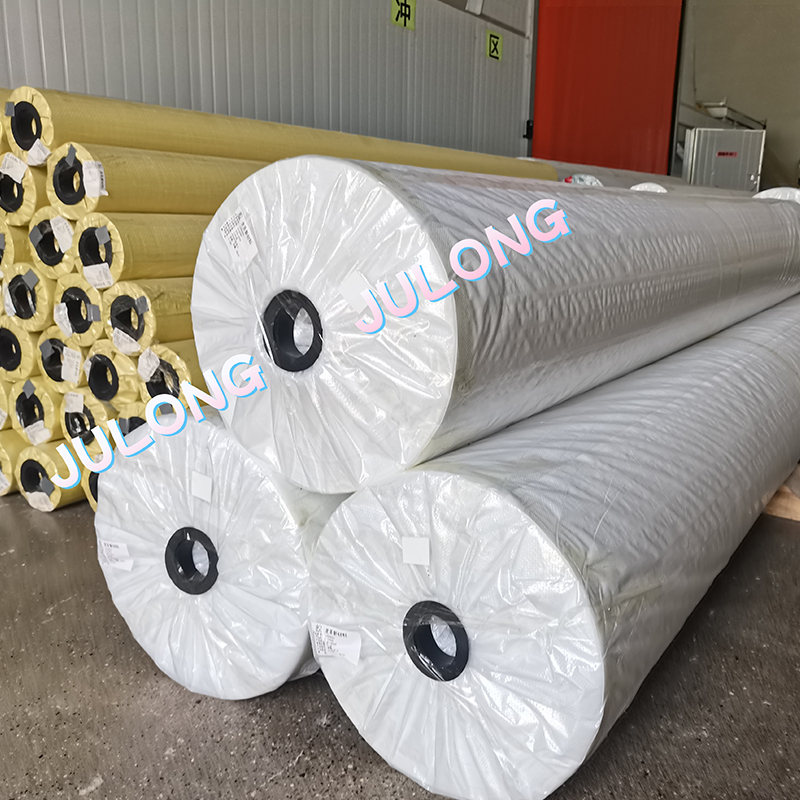

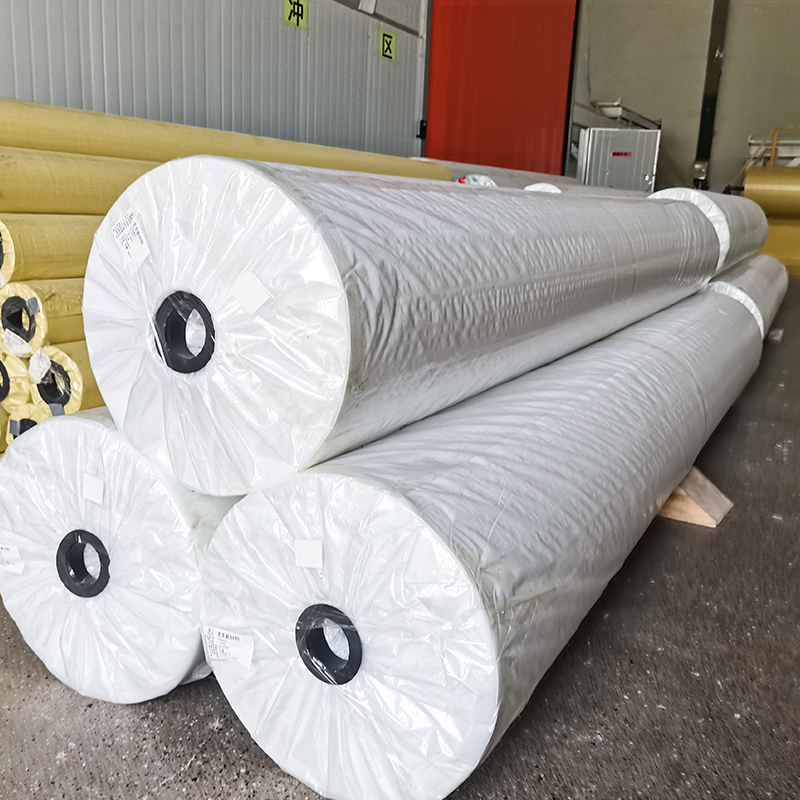

1250G TingHao L6 Finished Goods Packaging
